CONNECTIONS / VIKING JOHNSON

Confidence in
every connection.

Explore Viking Johnson couplings, flange adaptors, dismantling joints and repair products for new pipelines, transitions and maintenance.

Explore the ranges

UltraGrip UltraGrip Amplified AquaFast MaxiFit Large Diameter Dismantling Joints HandiRange

VIKING JOHNSON PRODUCT PORTFOLIO

The right fit
for your application.

Start with the connection you need. Then match the actual pipe dimensions, material and operating conditions to the selected fitting.

Restrained connections

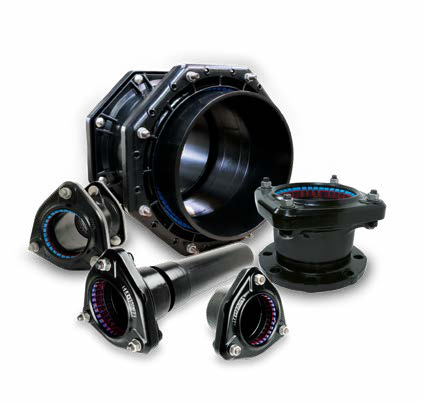

UltraGrip

DN40–DN600

Wide-tolerance couplings and flange adaptors for restrained pipe connections, transitions and cut-out repairs.

Progressive gripping helps resist pipe pull-out.
A wide outside-diameter tolerance accommodates different pipe dimensions.
Pre-assembled fittings simplify positioning in confined installation areas.

Selection notes

Confirm pipe material and actual OD. PE and PVC support-liner requirements and pressure ratings depend on the selected size and application.

Download brochure

English PDF · 2.3 MB
Issue 8 · 1 October 2024

Large-diameter restrained connections

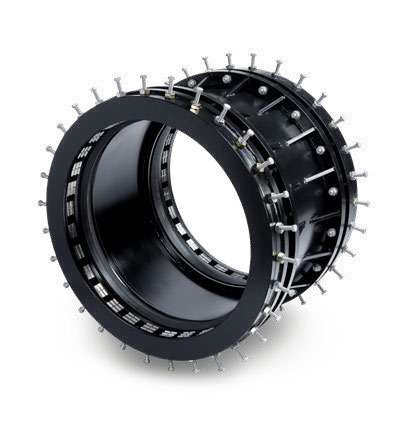

UltraGrip Amplified

DN700–DN1200

An extension of the UltraGrip restrained range for large-scale water infrastructure and pipeline repairs.

Couplings, reducing couplings and flange adaptors for larger networks.
Wide-tolerance sealing and gripping technology accommodates pipe variation.
Restrained connections help manage axial forces at the joint.

Selection notes

Confirm the model, pipe material, OD range, pressure rating and installation conditions against the DN700–DN1200 brochure.

Download brochure

English PDF · 8.6 MB
March 2026 edition

PE & PVC connections

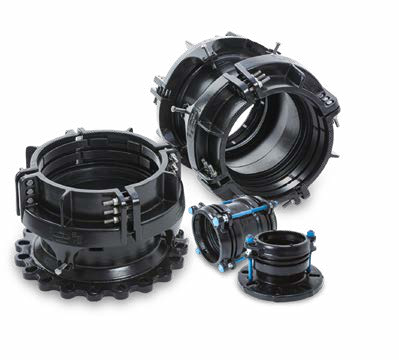

AquaFast

63–450 mm pipe OD

Mechanical couplings and flange adaptors designed to simplify polyethylene pipe connections, with PVC compatibility in the 63–315 mm range.

No internal support liner required for the specified applications.
A metal-to-metal stop gives a visual indication of correct bolt-up.
Pre-assembled fittings support installation without fusion equipment.

Selection notes

63–315 mm: specified PE and metric PVC applications. 355–450 mm: PE applications. Confirm the applicable pipe material, SDR and pressure rating for each fitting.

Download brochure

English PDF · 1.7 MB
Issue 8 · 1 October 2024

Flexible, wide-tolerance connections

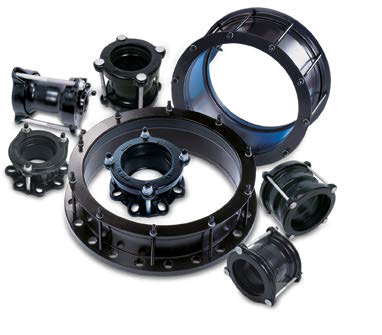

MaxiFit

DN40–DN700, depending on model

Universal mechanical fittings for joining plain-ended pipes with different outside diameters, including transitions and repair applications.

Wide tolerance supports connections across several pipe materials.
The portfolio includes couplings, stepped couplings and flange adaptors.
Pre-assembled designs and captive bolts help simplify installation.

Selection notes

MaxiFit is not end-load restrained. Provide suitable external restraint. Use on PE is limited to specific short repair sections with close-fit support liners; it is not for joining long PE pipe lengths.

Download brochure

English PDF · 2.0 MB
Issue 8 · 1 October 2024

Dedicated & bespoke fittings

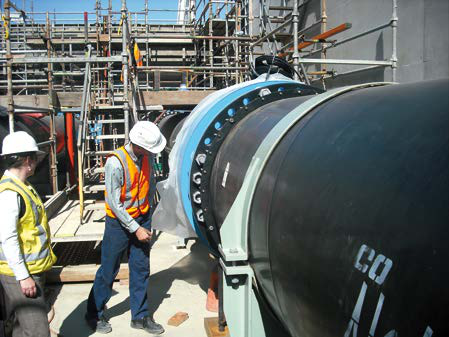

Large Diameter

DN350–DN4000

Dedicated couplings and flange adaptors for projects where pipe dimensions, materials and operating requirements are known in advance.

Standard and bespoke fittings for standard or nonstandard pipe diameters.
Stepped couplings connect pipes with different outside diameters.
Flange drilling and product configuration can be specified for the project.

Selection notes

Specify the actual pipe OD, material, working pressure and flange standard. Confirm the required anchorage or harnessing arrangement; flexible couplings are not inherently end-load restrained.

Download brochure

English PDF · 1.7 MB
Issue 8 · 1 October 2024

Flanged equipment & maintenance access

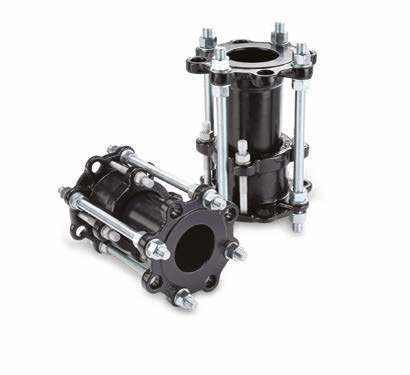

Dismantling Joints

DN40–DN4000

Double-flanged fittings that provide length adjustment during installation and facilitate the removal of valves, pumps and meters for maintenance.

Longitudinal adjustment helps equipment fit within the available pipework space.
Supplied tie bars lock the fitting at the required installed length.
A fully end-load-resistant assembly when correctly specified and installed.

Selection notes

Confirm flange drilling, pressure rating, overall length, required adjustment and tie-bar arrangement. This is an adjustable installation fitting, not a joint for continuous movement in service.

Download brochure

English PDF · 1.4 MB
Issue 8 · 1 October 2024

Stainless steel repair & tapping

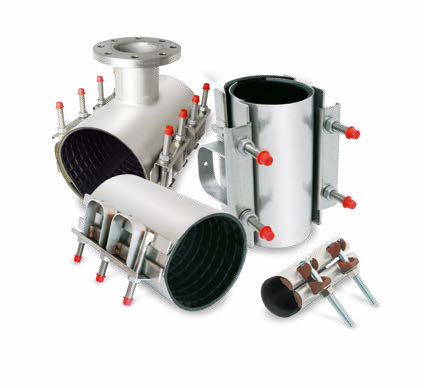

HandiRange

HandiClamp DN50–DN1000 · HandiBand DN15–DN50

Stainless steel repair and tapping products comprising HandiClamp, HandiTap, HandiTee and HandiBand.

Repair options for localised pipe damage such as corrosion holes and cracks.
HandiTap and HandiTee provide service and branch connection options.
Different clamp lengths and configurations suit different repair requirements.

Selection notes

Select by actual pipe OD, damage type, clamp length and operating pressure. HandiClamp and HandiTap do not resist axial end loads. HandiTap and HandiTee dimensions are model-specific; check the brochure.

Download brochure

English PDF · 0.9 MB
Issue 8 · 1 October 2024

Sizes shown describe the manufacturer's product ranges. Confirm the exact fitting, pipe compatibility, pressure rating and installation requirements before ordering. Contact DPU for availability and lead time for your selected model and size.

A reliable connection starts with the right information.

Pipe material, actual outside diameter and condition
For PE pipe: SDR or wall thickness
Operating pressure, temperature and service medium
Required end-load restraint and installation conditions
Mating flange standard and pressure class, where applicable
Quantity, delivery location and project schedule
